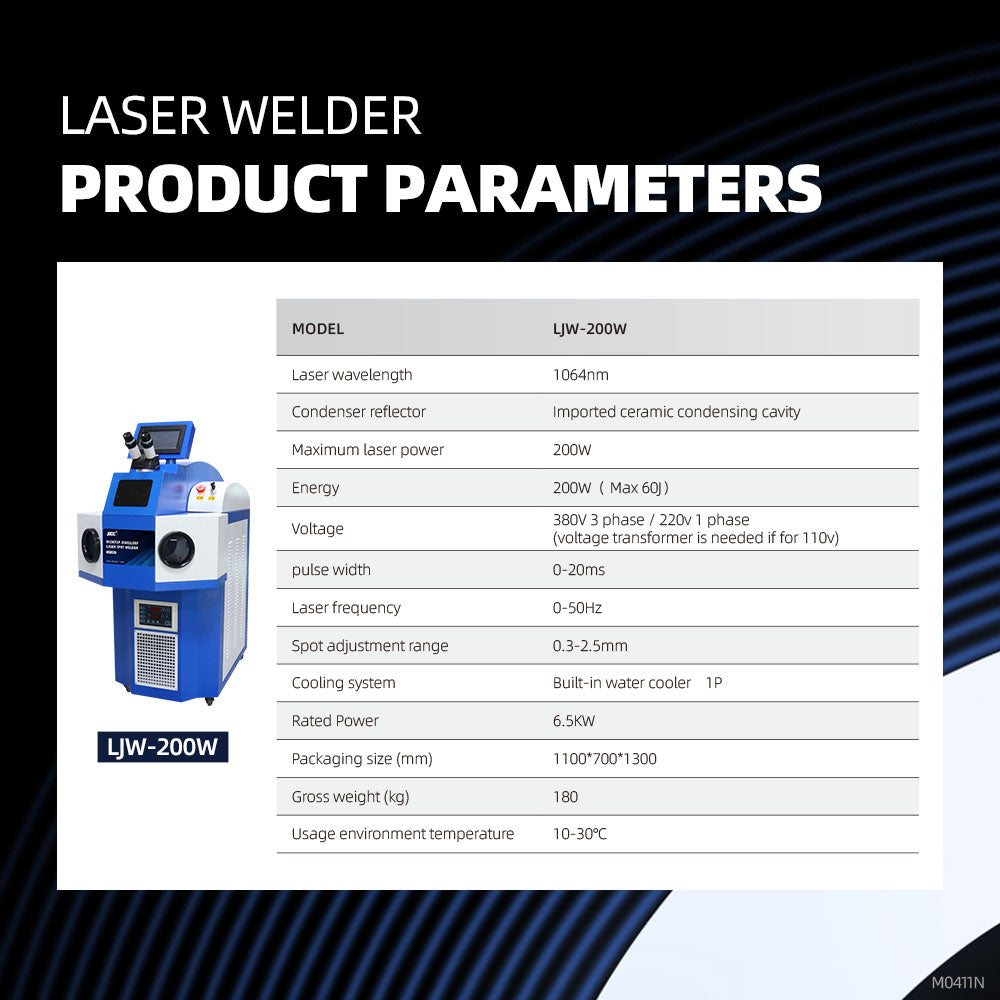

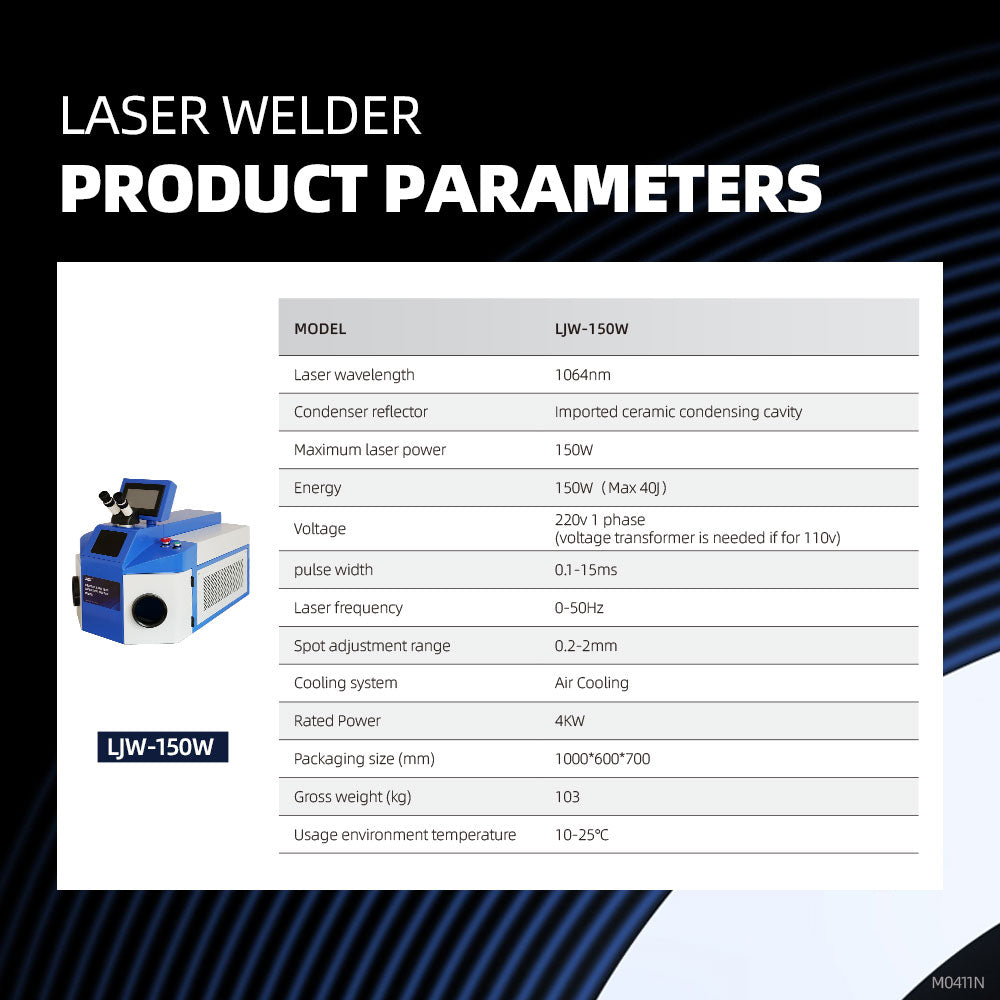

PARAMETERS

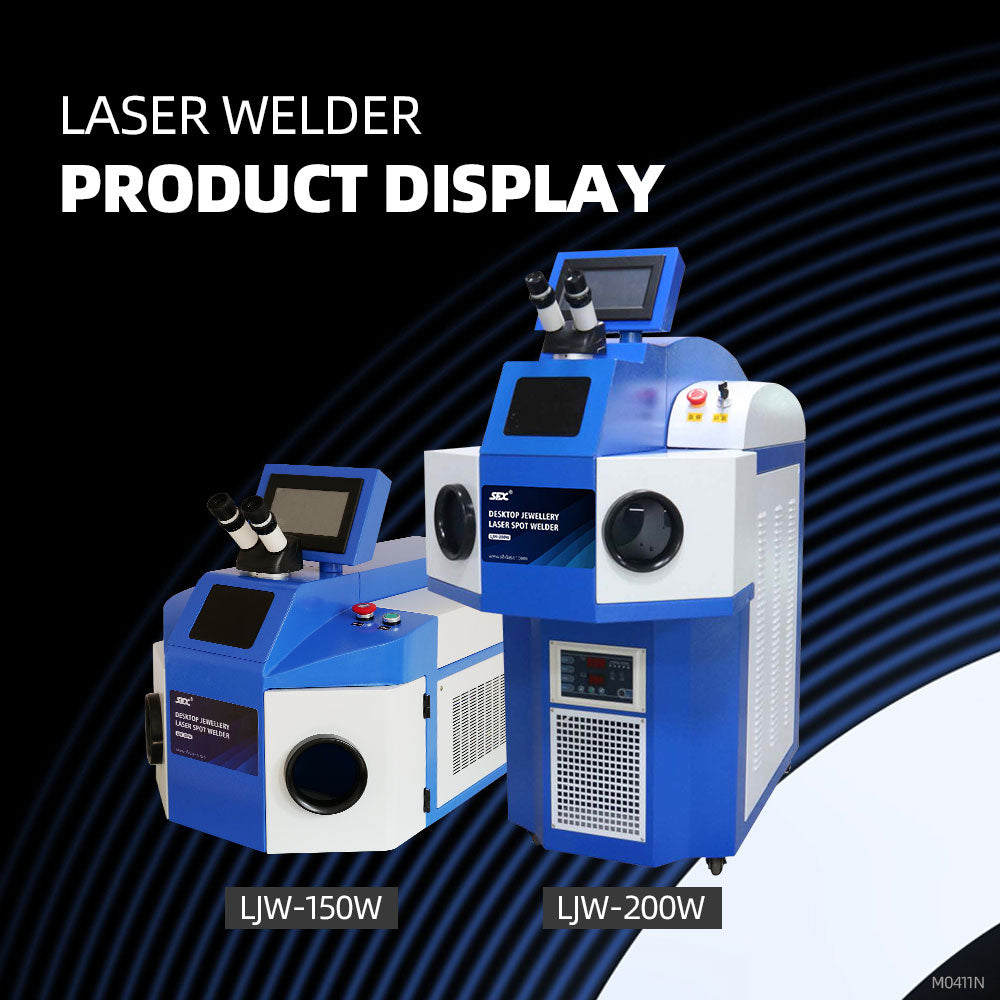

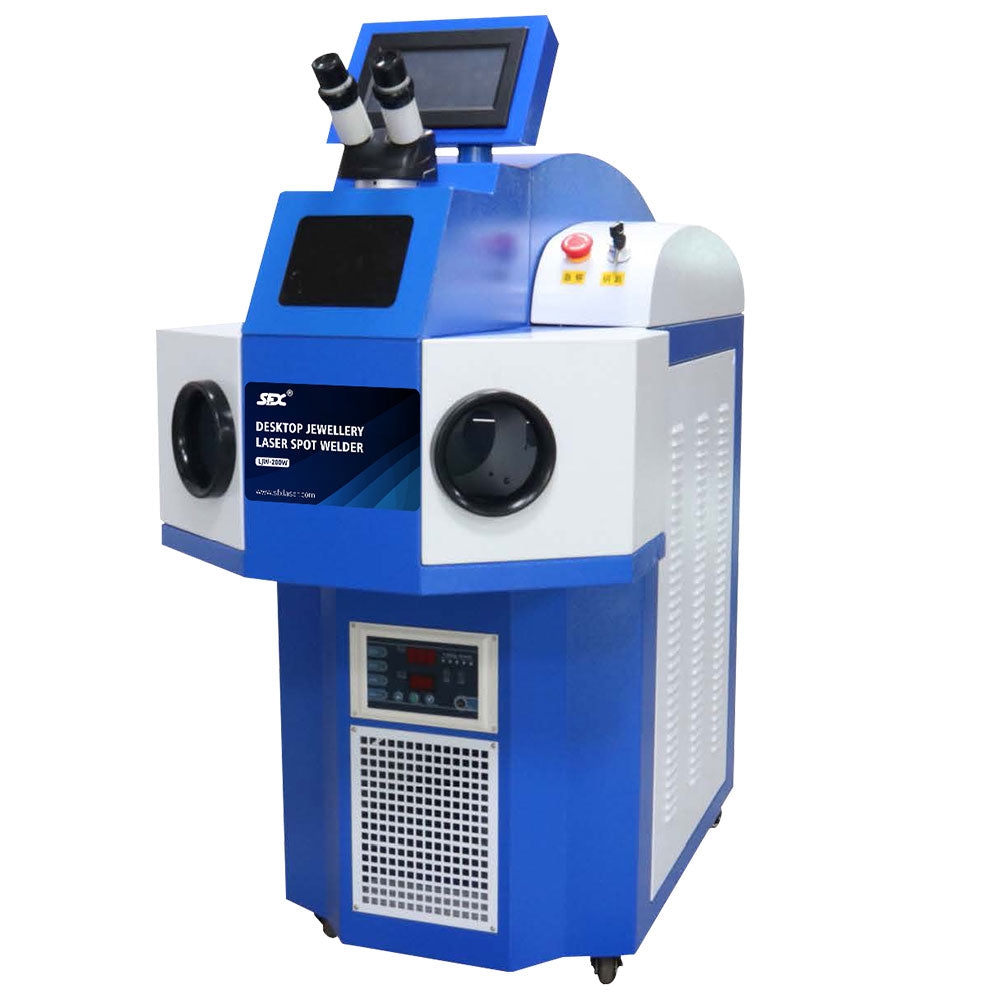

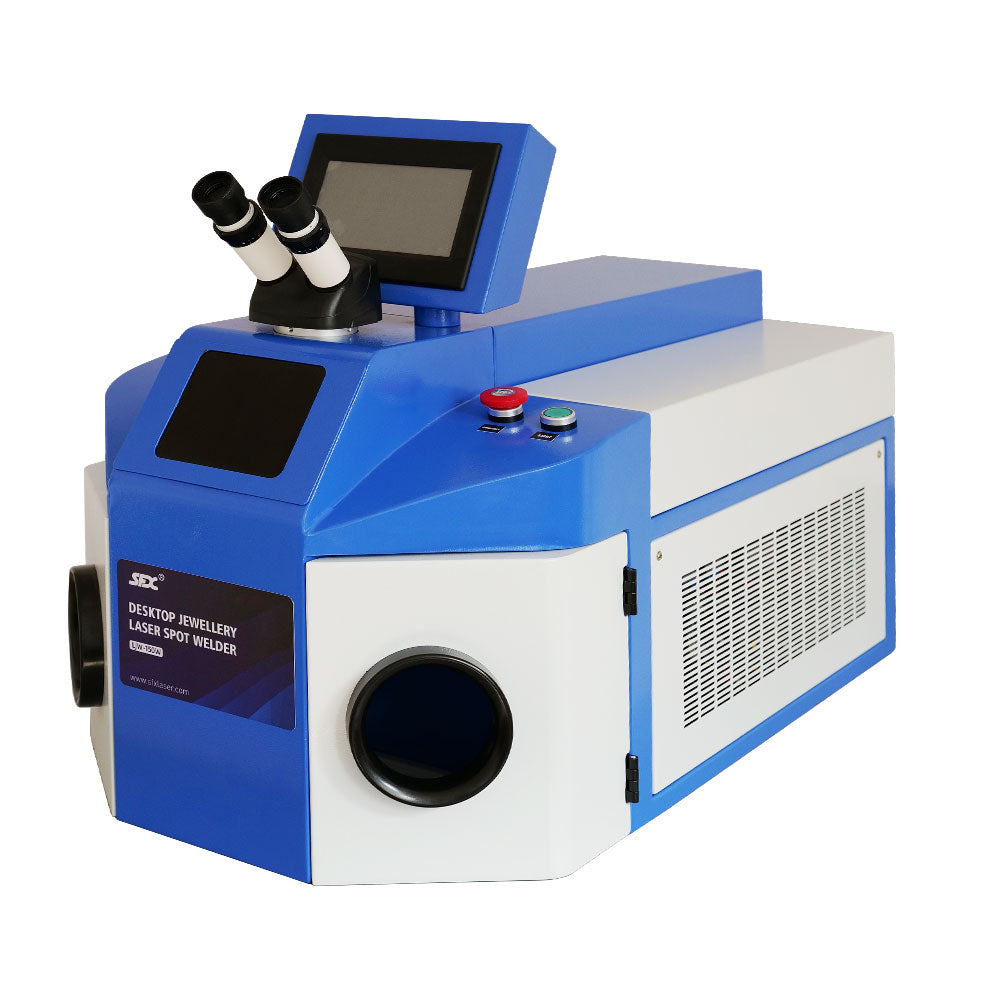

- Model: LJW-150 / LJW-200
- Laser Power: 150W (40J) / 200W (60J)
- Laser Wavelength: 1064nm
- Condenser Reflector: Imported Ceramic Condensing Cavity
- Voltage: 220V 1 Phase
- Pulse Width: 0.1-15ms / 0-20ms
- Laser Frequency: 0-50Hz
- Spot Adjustment Range: 0.2-2mm (150W) / 0.3-2.5mm (200W)
- Cooling System: Air Cooling (150W) / Built-in Water Cooler 1P (200W)
- Rated Power: 4KW (150W) / 6.5KW (200W)
- Packaging Size: 1000600700mm (150W) / 11007001300mm (200W)
- Gross Weight: 103KG (150W) / 180KG (200W)
- Usage Environment Temperature: 10-25℃ (150W) / 10-30℃ (200W)
PRODUCTS ADVANTAGES
- High Precision: The jewelry laser welders offer precise control, with adjustable energy, pulse width, frequency, and spot size (150W: 0.2-2mm; 200W: 0.3-2.5mm), allowing for a wide range of welding effects.

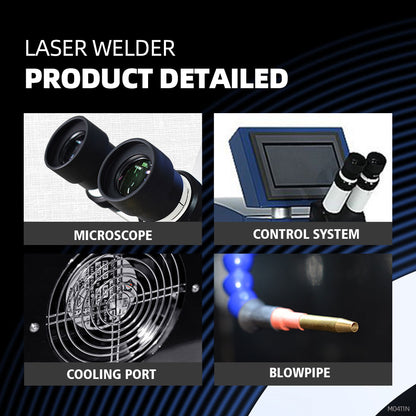

- Microscope Observation System: Equipped with a special microscope observation system featuring crosshairs and a high-speed electronic filter device to protect the operator’s eyes during operation.
- Digital Control System: The advanced digital control system features a capacitive touch screen, offering a more responsive and user-friendly interface than traditional screens. The visual display makes it simple and convenient to operate.
- Cooling Port Design: The cooling port design helps to effectively prevent the machine from overheating during extended use, ensuring reliable performance.
- Stable Blowpipe: A continuous and stable blowpipe prevents oxidation and blackening of products during welding, maintaining the quality of the workpieces.
APPLICATIONS & MATERIALS

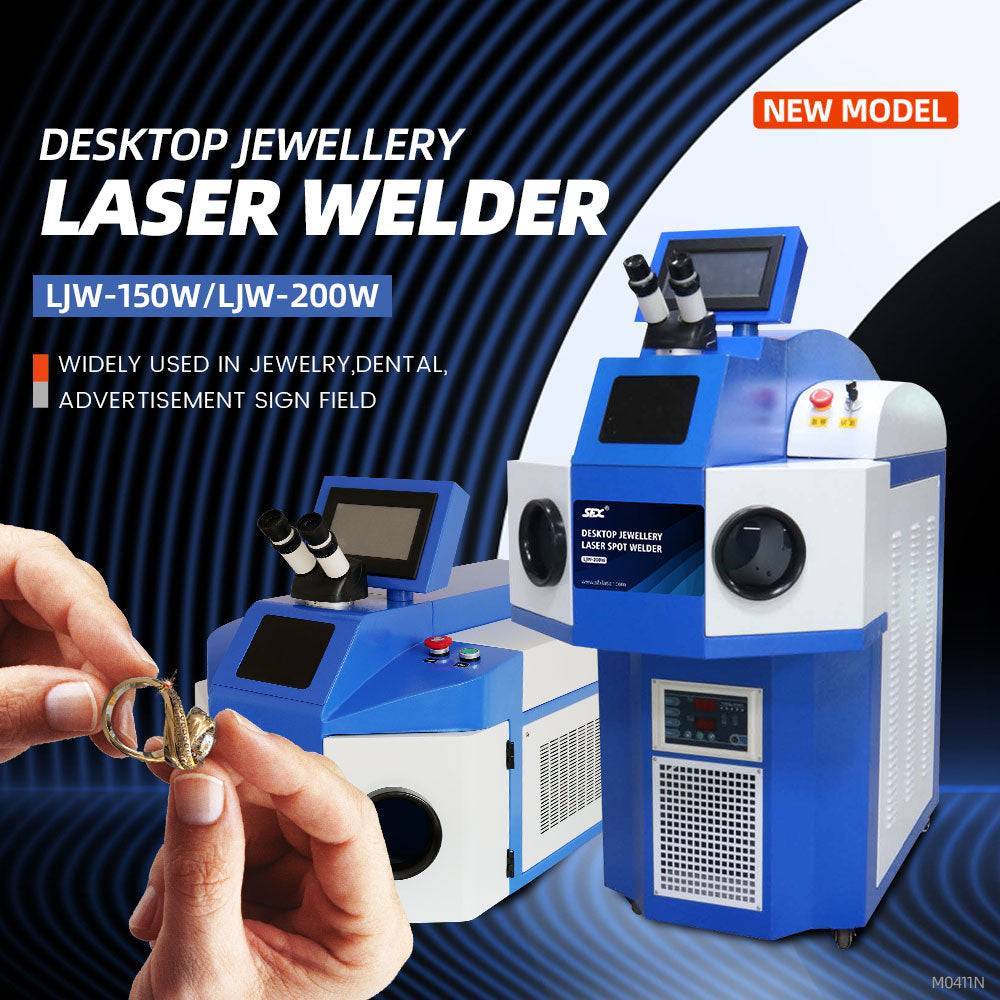

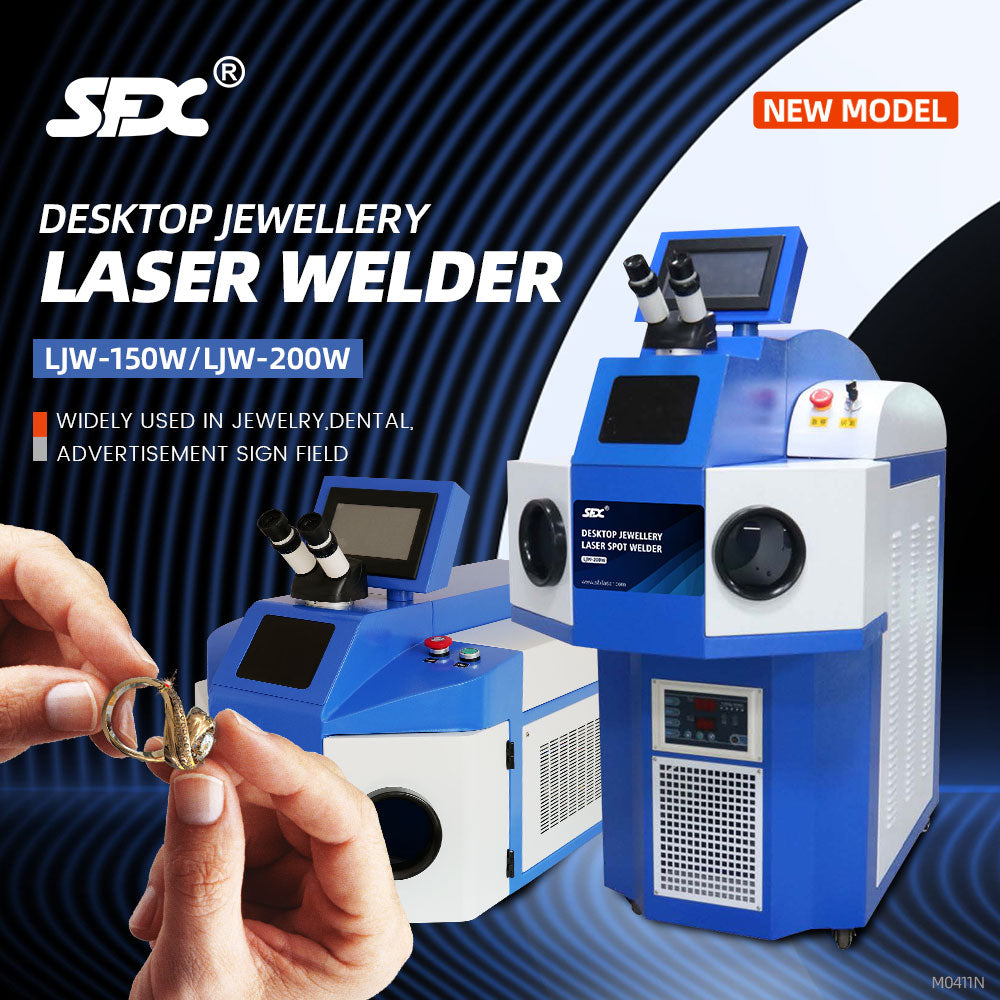

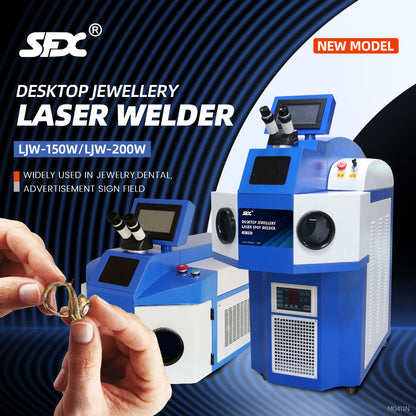

The LJW-150 and LJW-200 Jewelry Laser Spot Welding Machines are widely used across various industries, including:
- Aviation & Aerospace
- Jewelry
- Medical Equipment
- Aluminum Alloy Dentures
- Instruments & Electronics
- Machining
- Automobiles
These machines are particularly effective for welding and repairing gold and silver jewelry, such as filling holes, welding seams, creating patterns, inlaid parts, and claw foot parts.
