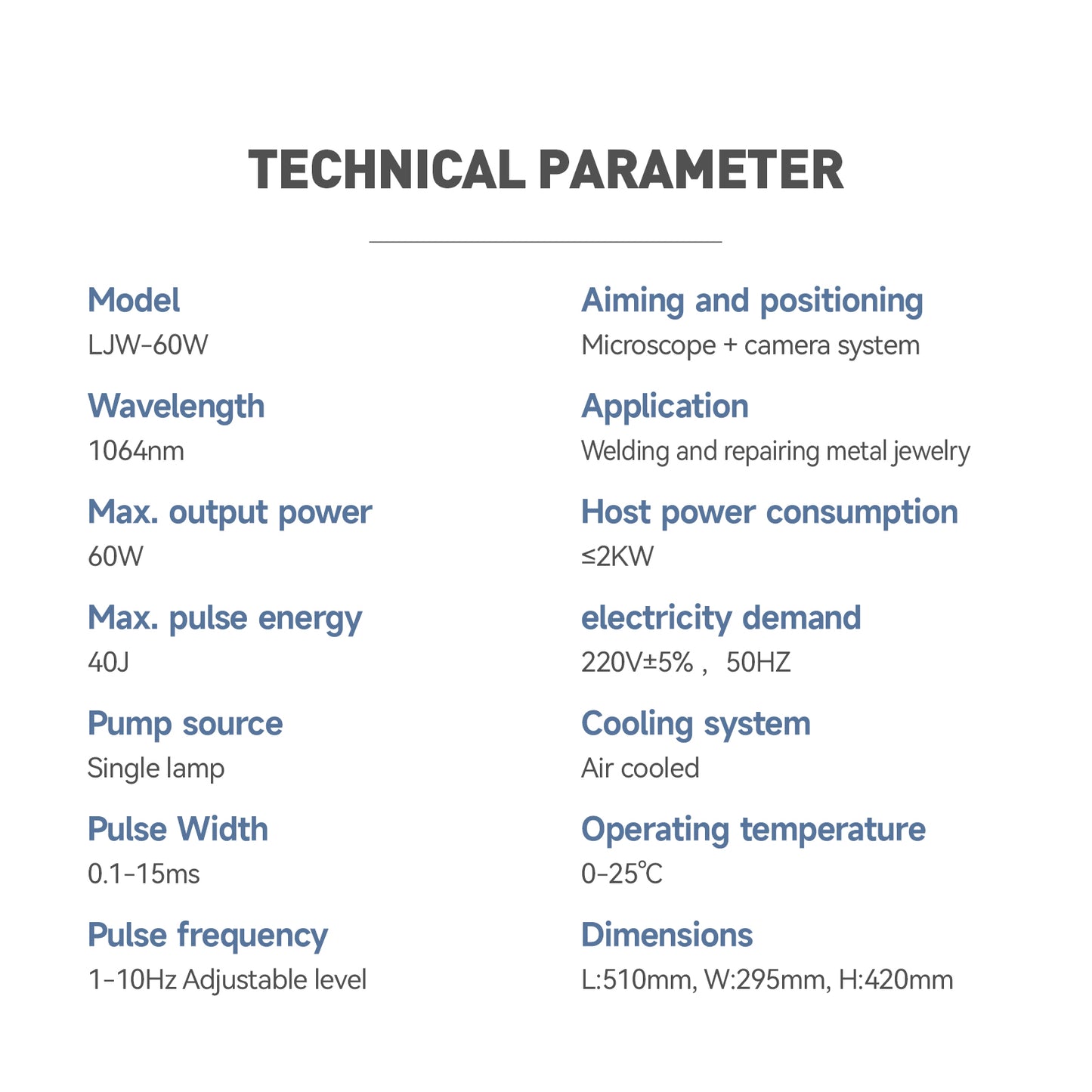

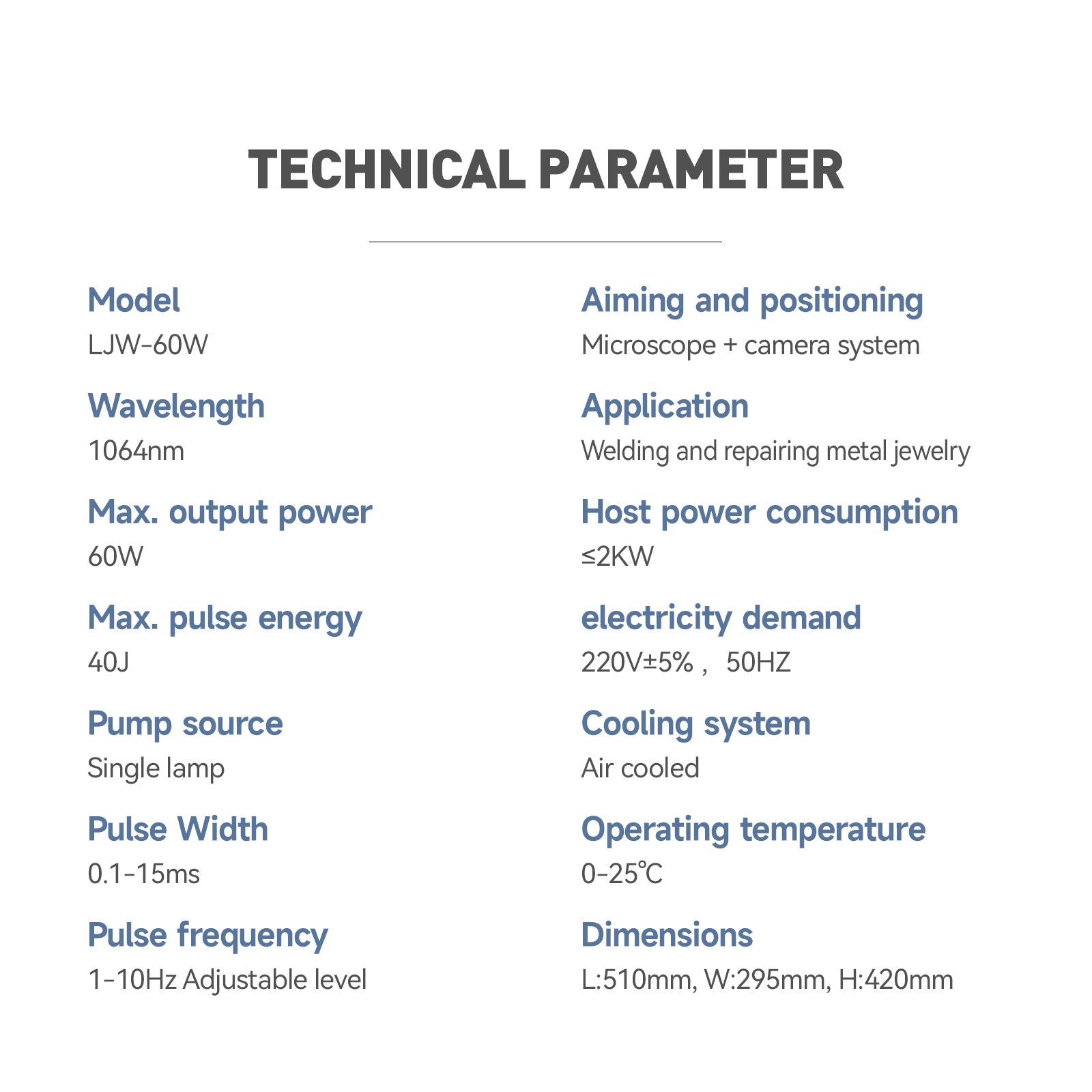

PARAMETERS

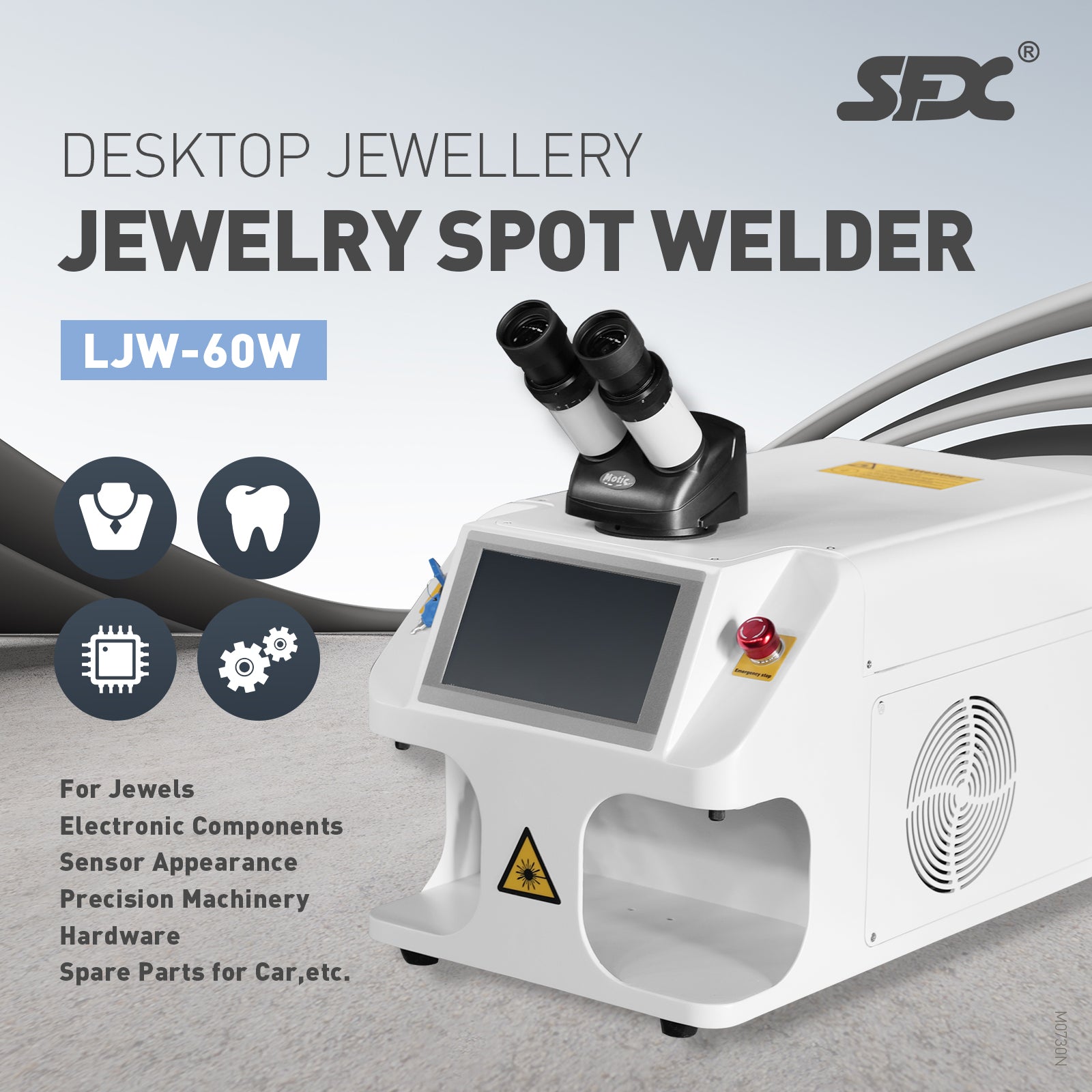

- Model: LJW-60W

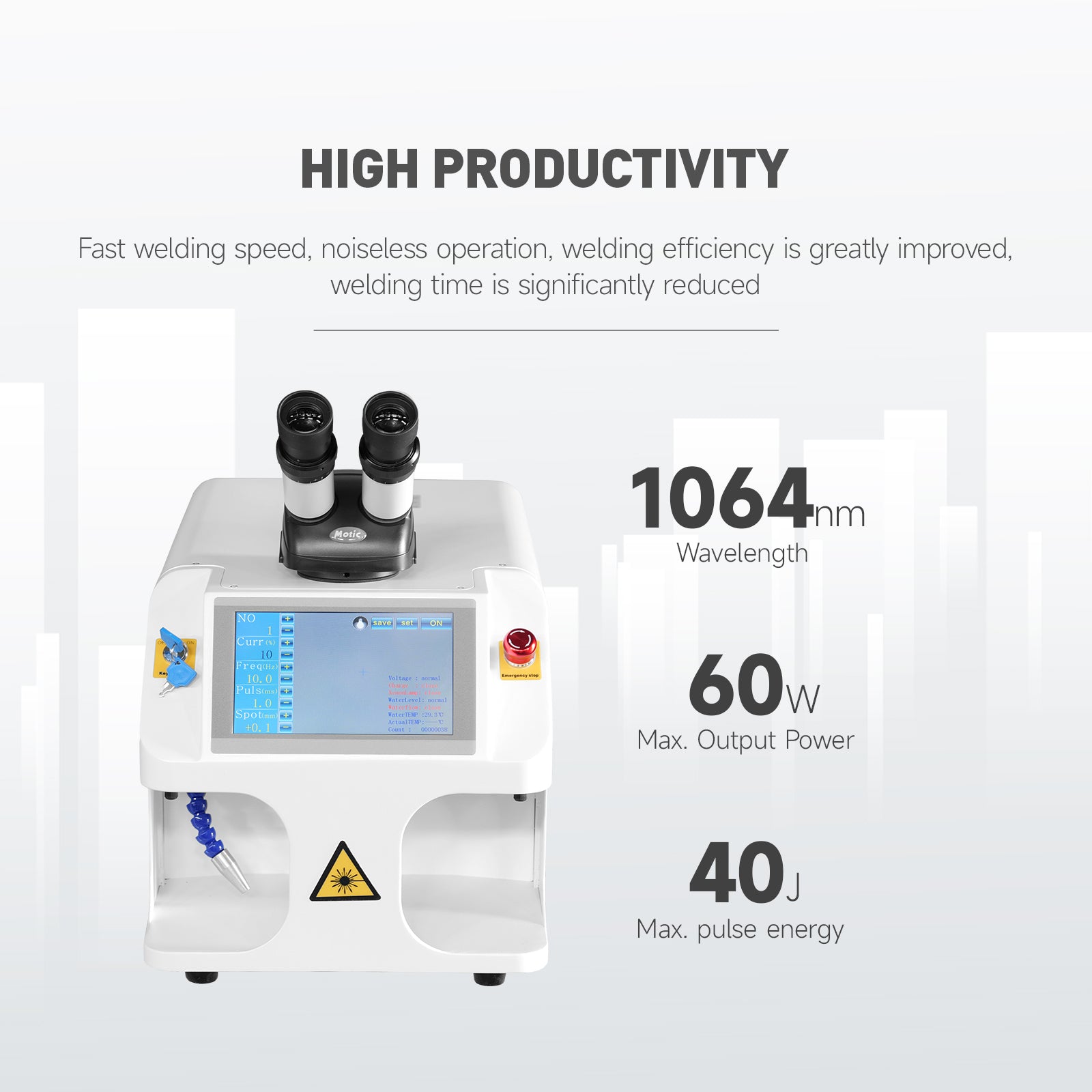

- Wavelength: 1064nm
- Max. Output Power: 60W
- Max. Pulse Energy: 40J
- Pump Source: Single Lamp
- Pulse Width: 0.1-15ms
- Pulse Frequency: 1-10Hz Adjustable Level
- Aiming and Positioning: Microscope + Camera System
- Application: Welding and Repairing Metal Jewelry
- Host Power Consumption: ≤2KW
- Electricity Demand: 220V±5%, 50Hz
- Cooling System: Air Cooled
- Operating Temperature: 0-25℃

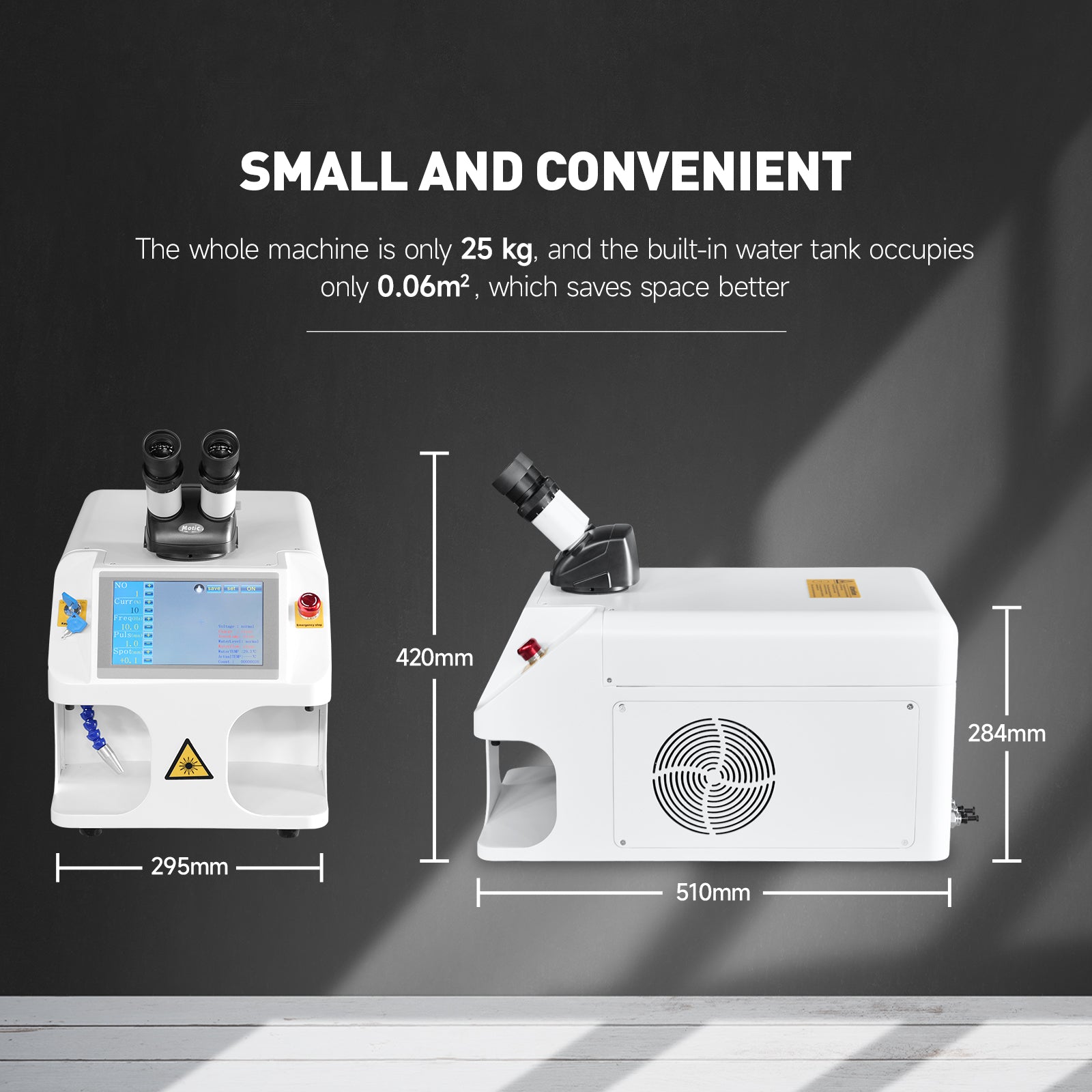

- Dimensions: 510*295*420mm

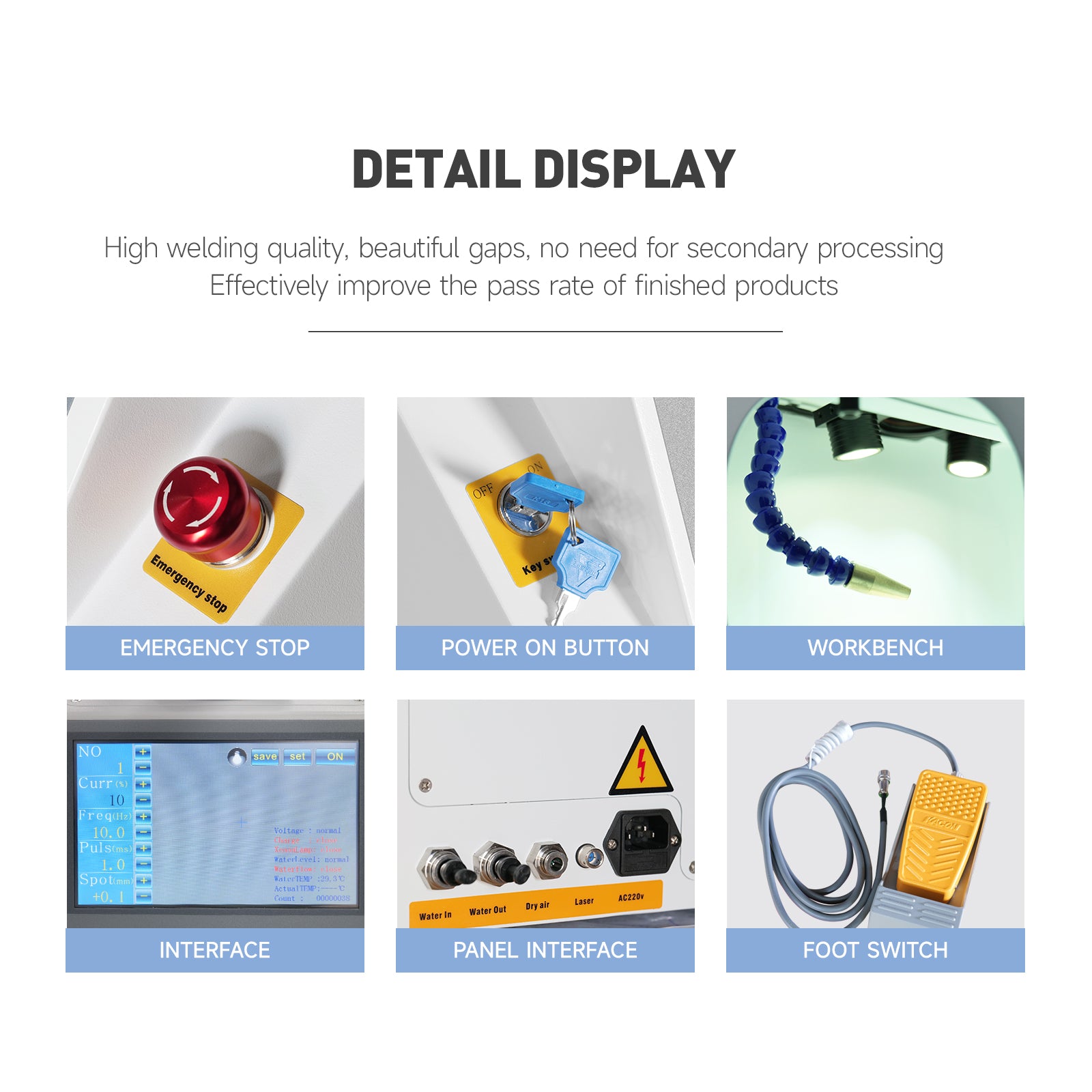

PRODUCTS ADVANTAGES
- High Precision: The jewelry laser welder offers precise control, with adjustable energy, pulse width, frequency, and light spot size, allowing for different welding effects tailored to specific needs.

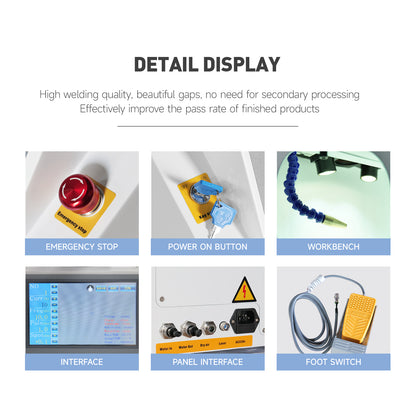

- High Welding Quality: This machine ensures high welding quality with beautiful, seamless gaps, eliminating the need for secondary processing. It significantly improves the pass rate of finished products.

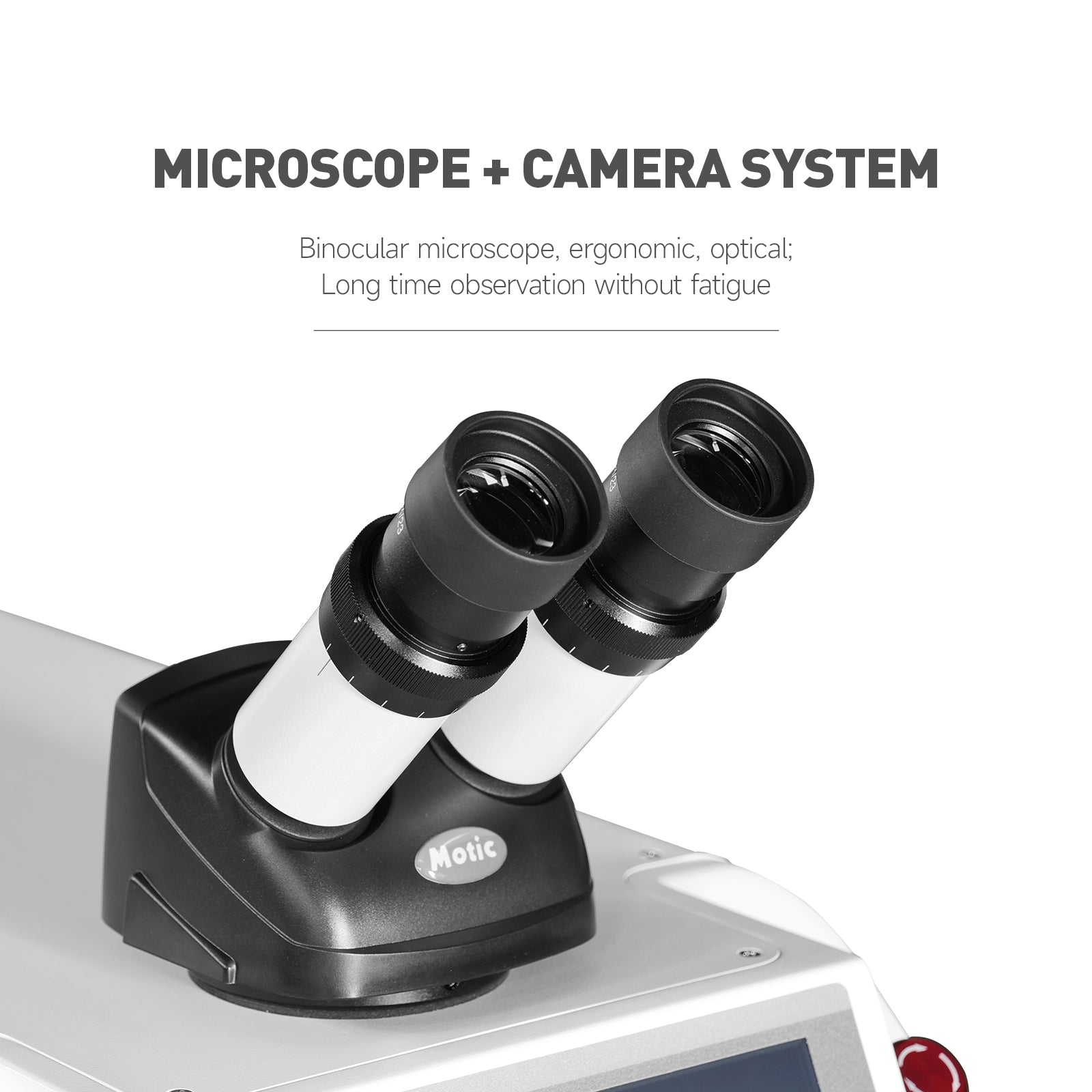

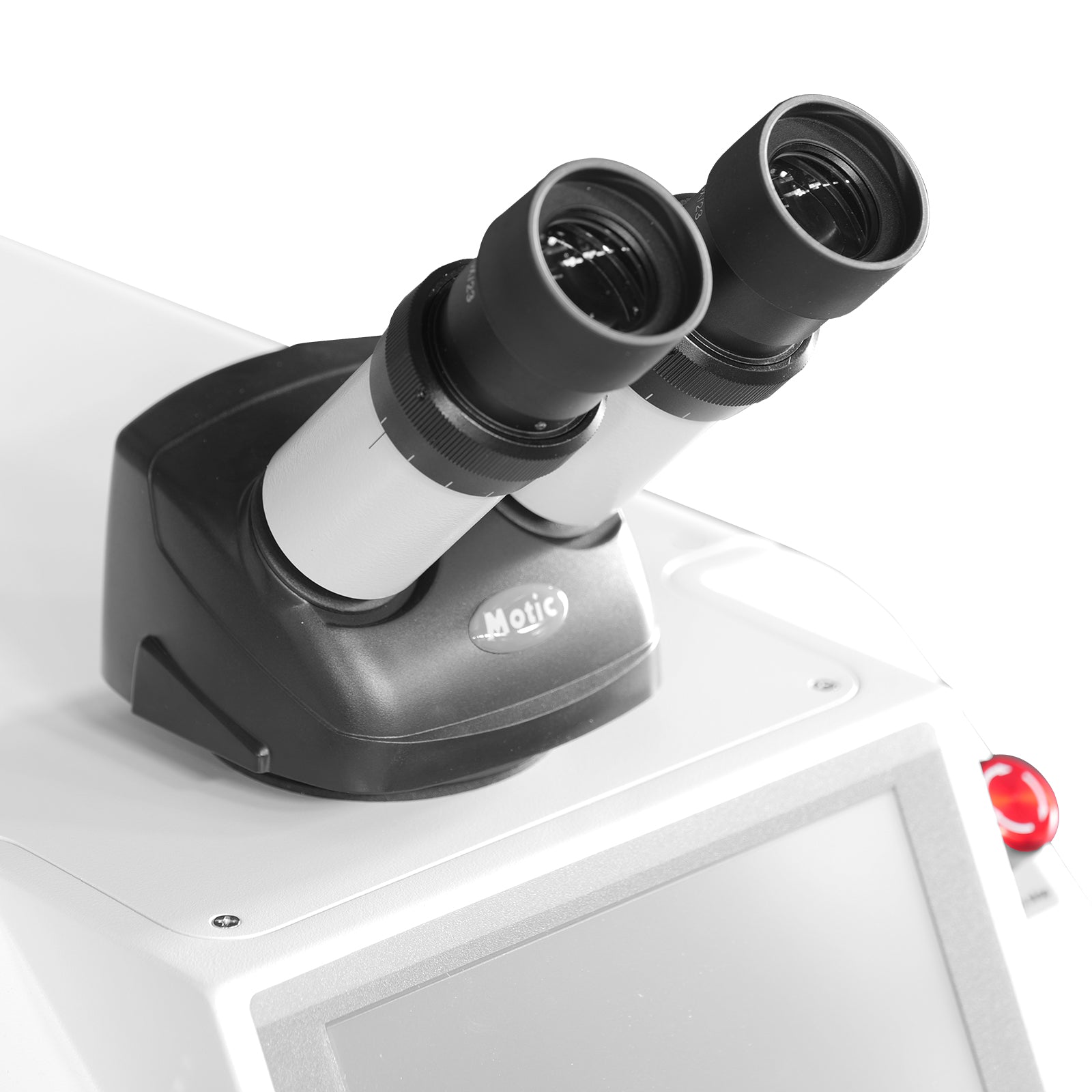

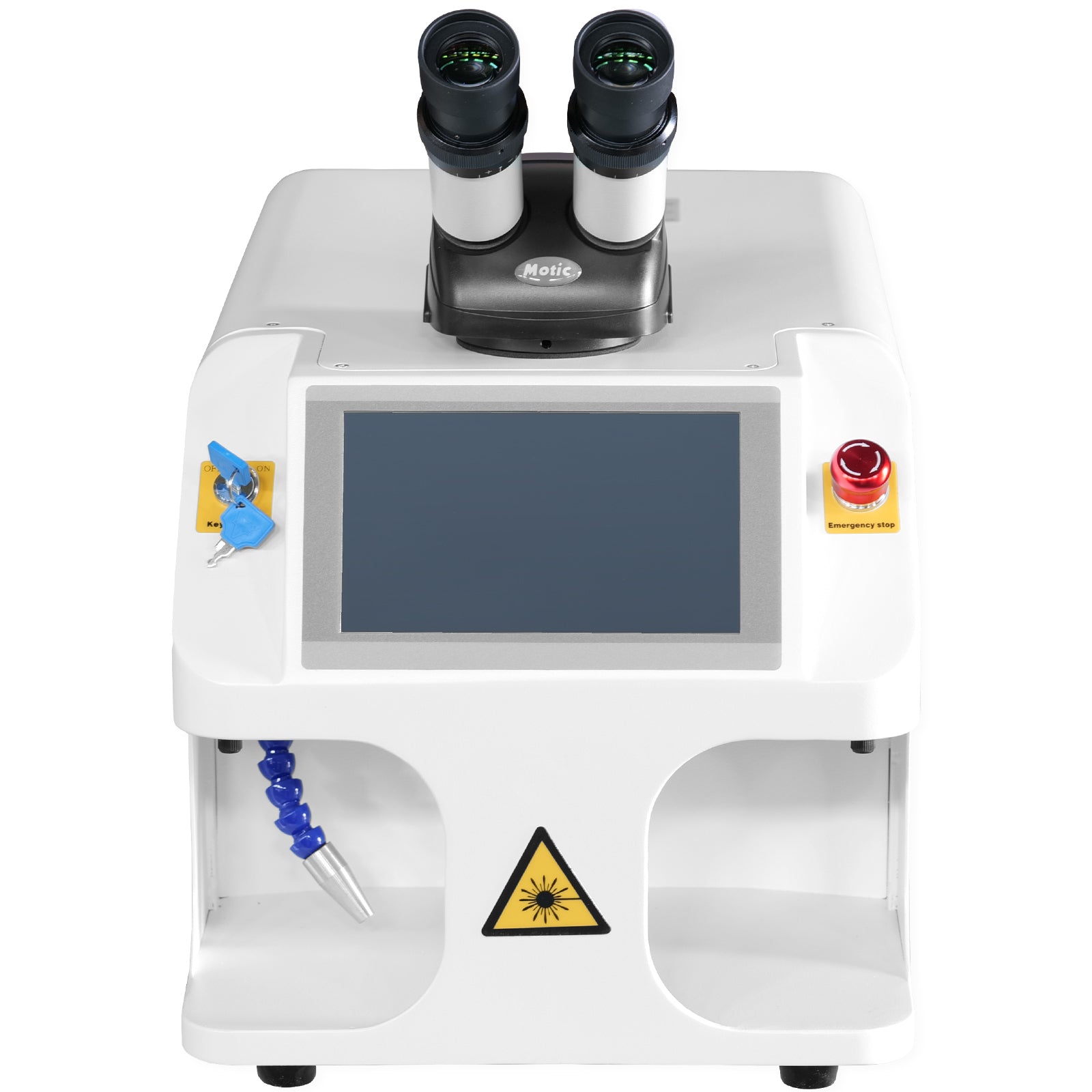

- MICROSCOPE + CAMERA SYSTEM: The binocular microscope and camera system are ergonomically designed, providing fatigue-free long-time observation for enhanced precision and control.
- Digital Control System: The system features a capacitive touch screen, offering a more sensitive and user-friendly parameter interface compared to traditional screens. The visual display makes operation simple and convenient.

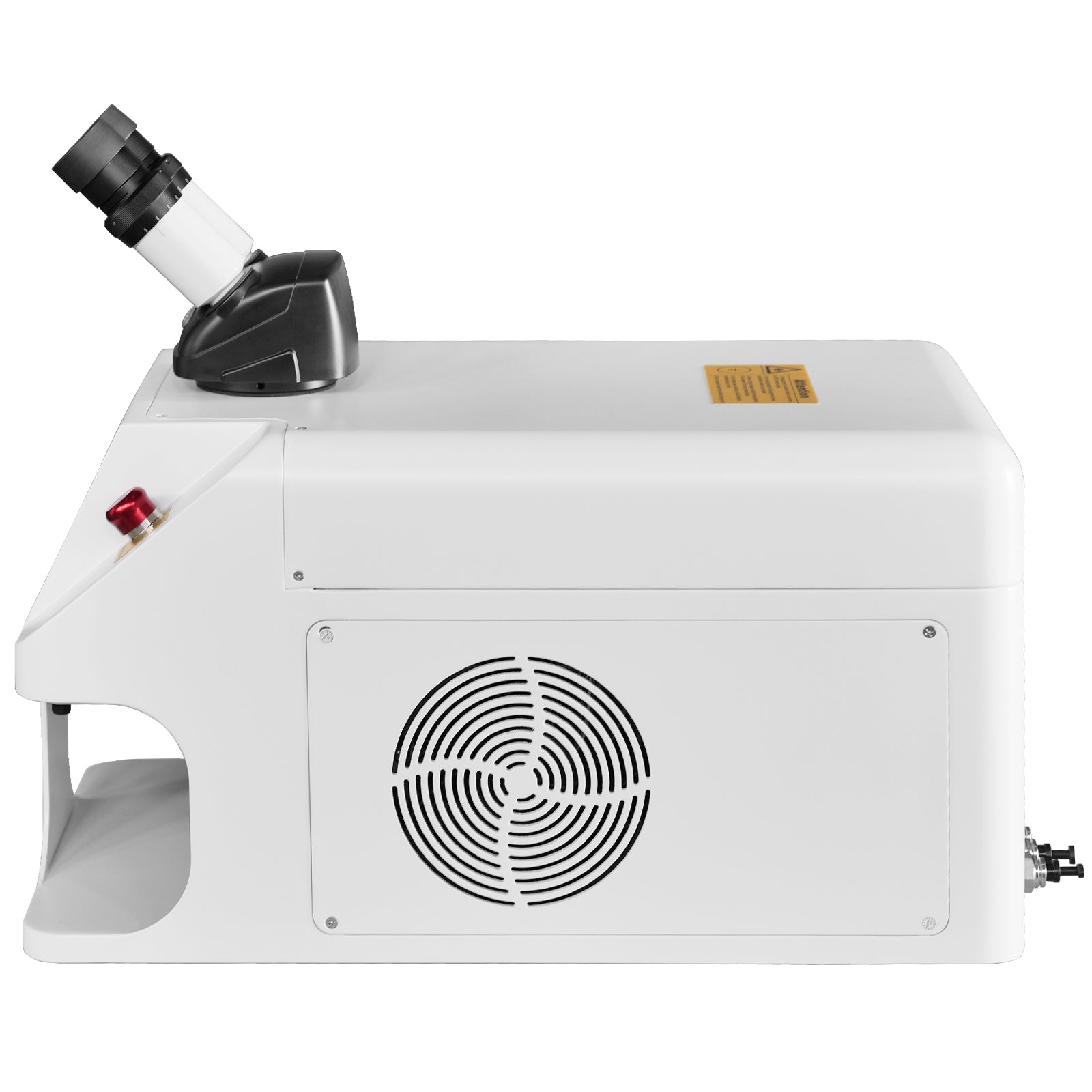

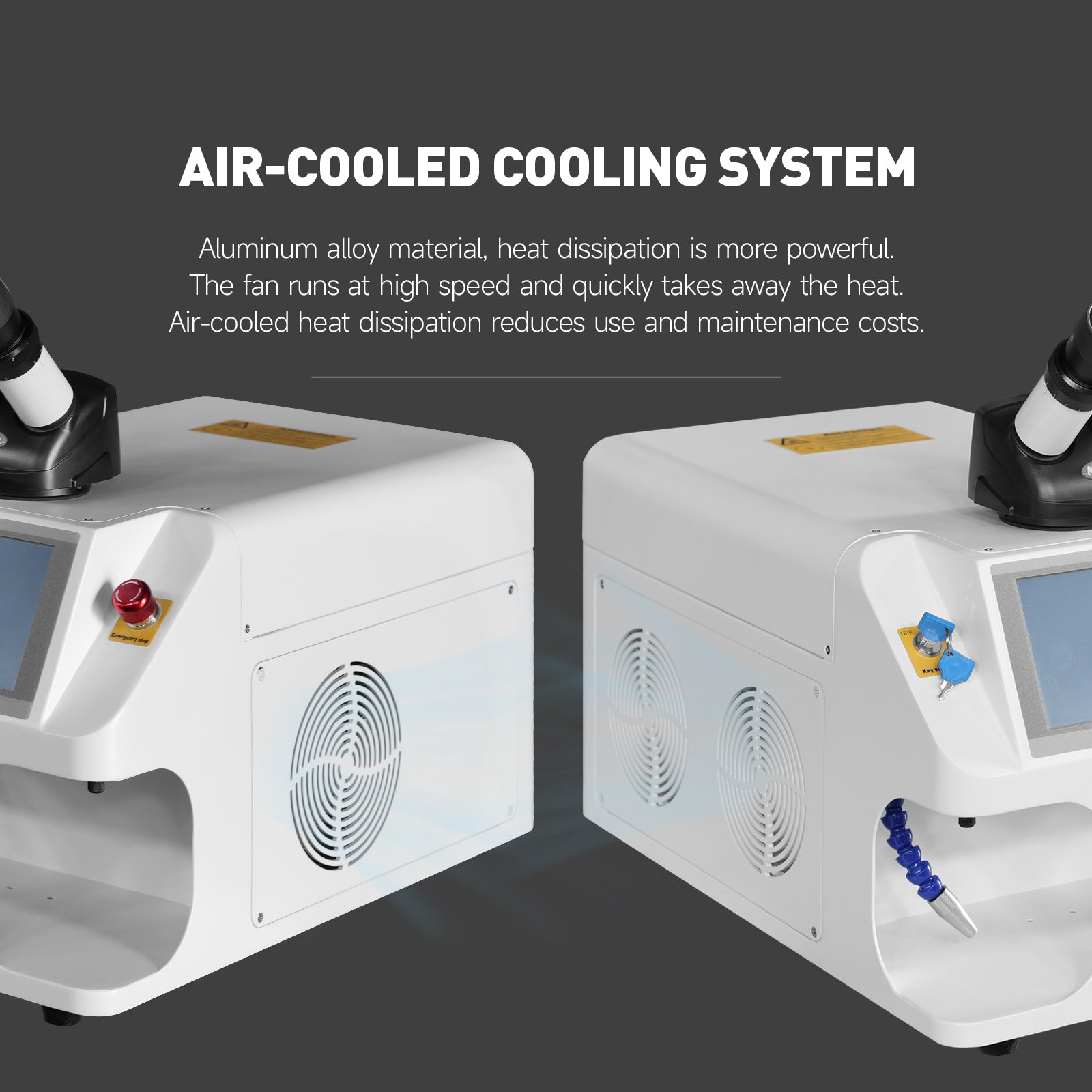

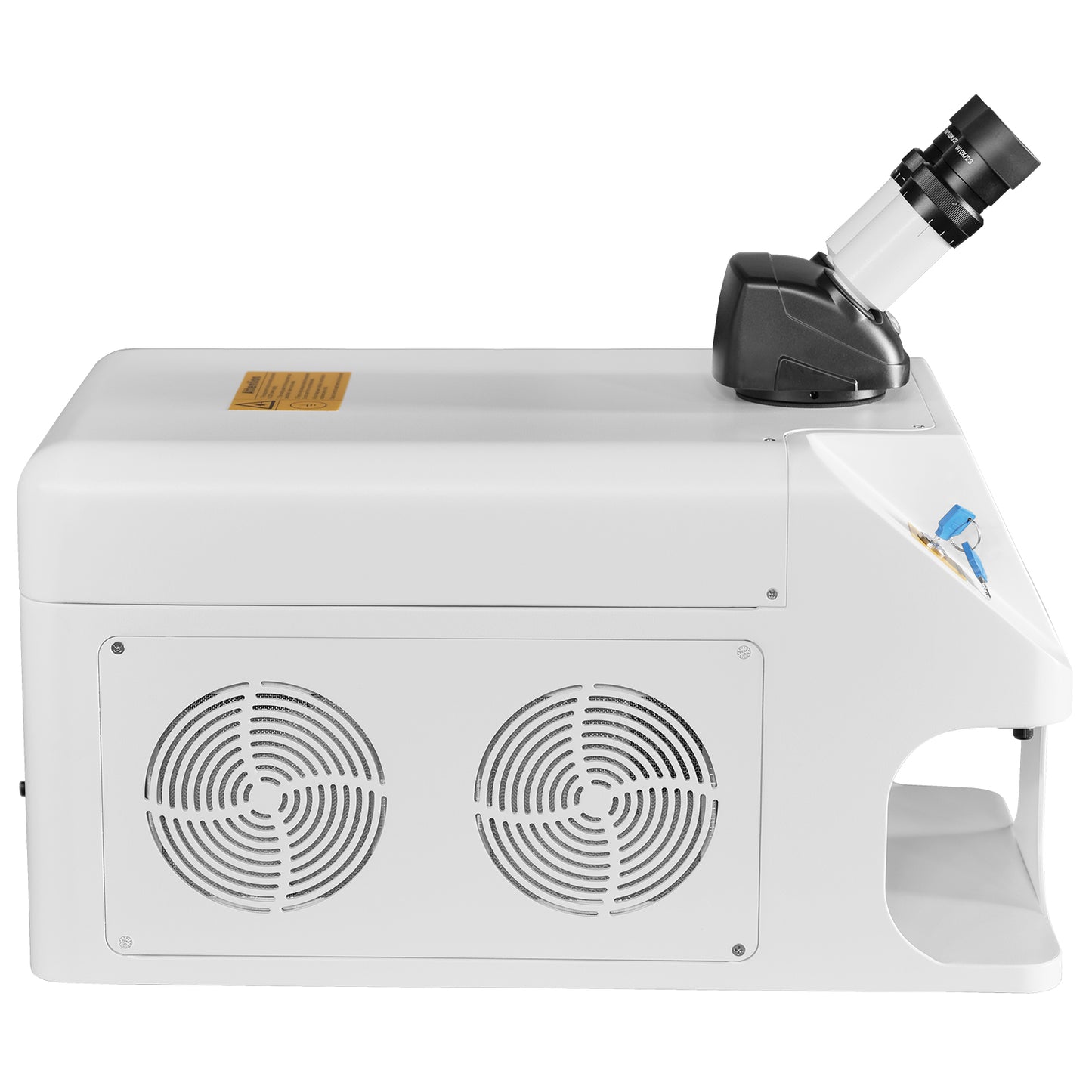

- Air-Cooled Cooling System:
The air-cooled system effectively prevents the machine from overheating during prolonged use, ensuring consistent and reliable performance. - Stable Blowpipe: The continuous and stable blowpipe prevents oxidation and blackening of the products during welding, maintaining the quality of the workpiece.
APPLICATIONS & MATERIALS
The LJW-60W Jewelry Laser Spot Welding Machine is widely used across various industries, including:
- Aviation & Aerospace
- Jewelry
- Medical Equipment
- Aluminum Alloy Dentures
- Instruments & Electronics
- Machining
- Automobiles
It is especially effective for welding and repairing gold and silver jewelry, including filling holes, welding seams, creating patterns, inlaid parts, and claw foot parts.
